Range: Delta
Barcode: 0763769996051
Type: Radiator Valve > Thermostatic > Modern
We recommend all TRV′s are installed on the flow rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi‐directional TRV from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
Frost protection settings which keeps the valve at a temperature to prevent damage to the radiator.
These valves come with Decorators Caps which are used to fully isolate valves, whilst a radiator is removed for decorating.
| Height (mm): | 130 |
| Width (mm): | 70 |
| Depth (mm): | 40 |
| Weight Product (kg): | 0.55 |
| Weight Boxed (kg): | 0.59 |

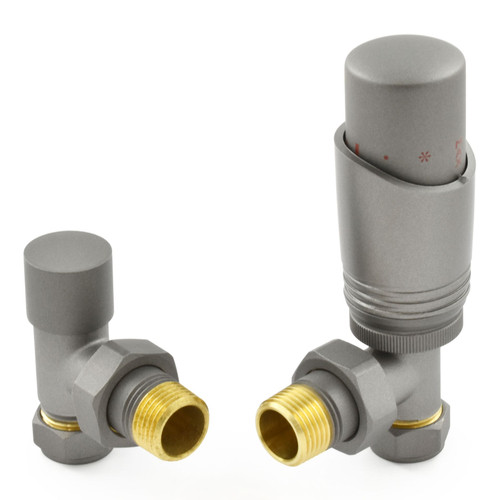

| Style: | Angled thermostatic radiator valve pair |
| Orientation: | Angled |
| Compression Inlet(s): | 15mm |
| Outlet(s): | 15mm Compression |
| Radiator Coupler: | ½” BSPT - Male |
| Comprises Of: | One wheel head and one lockshield |
| Material: | Brass |
| Finish: | Matte Metallic Grey |
| Warranty: | 2 year manufacturer's |
