Range: Faringdon
Barcode: 0763769982962
Type: Radiator Valve > Thermostatic > Traditional
We recommend all TRV's are installed on the flow rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi-directional TRV's from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
| Height (mm): | 140 |
| Width (mm): | 87 |
| Depth (mm): | 56 |
| Weight Product (kg): | 0.82 |
| Weight Boxed (kg): | 0.98 |

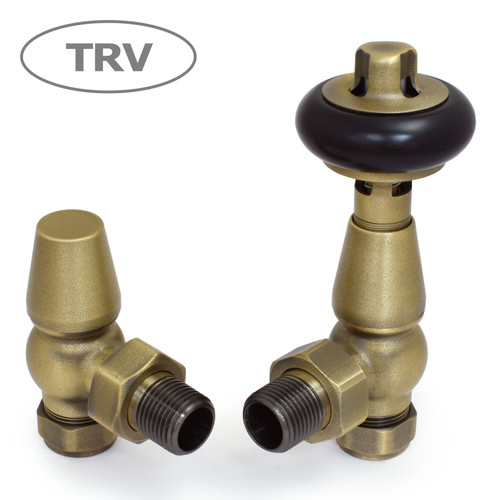

| Style: | Traditional thermostatic radiator valve and lock shield |
| Orientation: | Angled |
| Compression Inlet(s): | 15mm |
| Radiator Coupler: | ½” BSPT - Male |
| Standards: | CE EN215:2004+A1:2006 EN1489:2000 |
| Comprises Of: | One wheel head and one lockshield |
| Feature(s): | Frost Protection |
| Wheel-head Handle: | Black (real wood) |
| Material: | Brass |
| Finish: | Old English Brass |
| Warranty: | 6 year manufacturer's |
