Range: Traditional
Barcode: 0782003014313
Type: Radiator Valve > Thermostatic > Traditional
Height (mm): | 123 |
Width (mm): | 83 |
Depth (mm): | 55 |
Weight Product (kg): | 0.79 |
Weight Boxed (kg): | 0.92 |

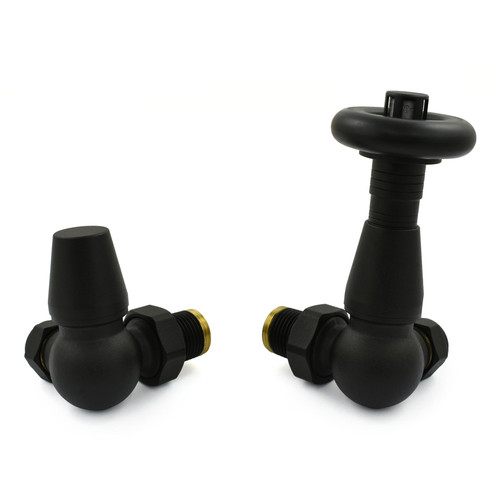

Style: | Traditional thermostatic radiator valve and lock shield |
Orientation: | Corner |
Compression Inlet(s): | 15mm |
Radiator Coupler: | ½” BSPT - Male |
Comprises Of: | One wheel head and one lockshield |
Feature(s): | Frost Protection |
Material: | Brass |
Finish: | Textured Black |
Warranty: | 3 year manufacturer's |
We recommend all TRVs are installed on the flow rather than the return pipework of a radiator. When used in conjunction with a system automatic bypass valve this thermostatic valve can be installed on either the flow or return in any orientation. System automatic bypass valves are a specific building regulation requirement for all new installations and boiler upgrades. All bi‐directional TRV from any manufacturer require the bypass valve to function correctly and thus avoid radiator hammer.
Frost protection settings which keeps the valve at a temperature to prevent damage to the radiator. These valves come with decorators caps which are used to fully isolate valves, whilst a radiator is removed for decorating.
